Standard Self-piercing Rivets

Features

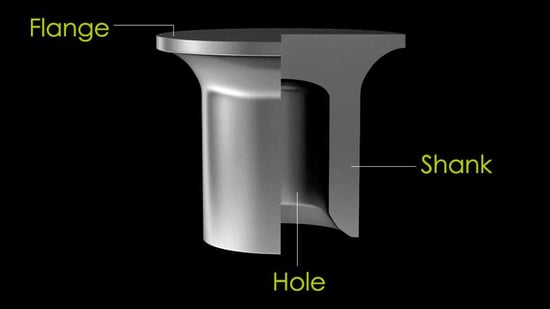

spr_structure

Self-piercing Rivets

The basic self-piercing rivet. Self-piercing rivets pierce through workpieces while fastening them together. No pre-made hole in the workpiece(s) is required before fastening.

spr_structure

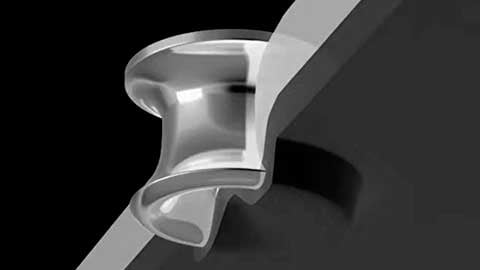

spr-fasten1

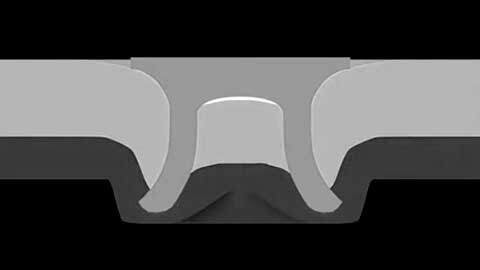

spr-fasten2

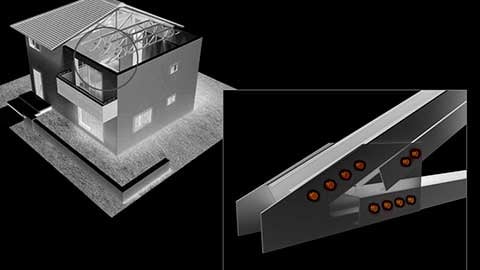

spr-fasten3
No hole in workpieces needed

Self-piercing rivets punch through (pierce) through the workpiece as they fasten them together, thus eliminating the need for pre-made holes in the workpiece.

Secure fastening of dissimilar materials

Self-piercing rivets can be used to fasten dissimilar materials that are difficult to weld together like aluminum and steel, or even metal and wood.

Perfect for fastening painted/coated steel plates

Self-piercing rivets fasten workpieces without heating the material, thus eliminating the need for repainting painted workpieces.

Clean fastening for a cleaner workplace

No sparks, smoke or swarf is generated when fastening Self-piercing rivets, all of which contributes to a cleaner workplace overall.

Fastening Process

Specification Table

Low Round

sp-3

Flat

Flat

Countersunk

Countersunk

Fastening Catalog Download

dl-1

60 years' experience of manufacturing rivets : "Fukui Byora's Fastener Series" leads the industry with total fastening technology.

Looking for a custom-made rivets?
Please visit the following webpage for details.
