Standard Blind Rivets

Features

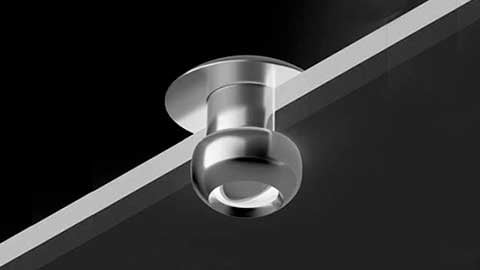

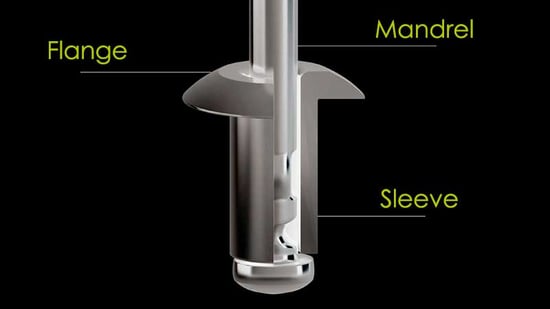

Blind Rivets (Standard Type)

These are the most common type of blind rivet used in various industries and are globally recognized as a standard fastener.

Features

Easy, secure and speedy fastening: Blind rivets offer high speed, reliable riveting. They are also easy to use, requiring just a little training using a riveter (a lightweight hand tool about the size of an electric drill).

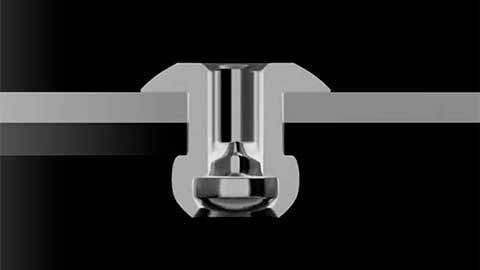

Only need access to one side of an assembly: Blind rivets are ideal for fastening workpieces that can only be accessed from one side, are in tight places, or are large and difficult to handle.

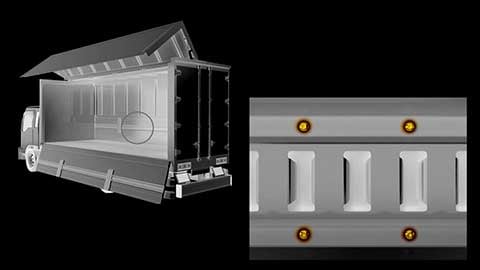

Reliable fastening: Blind rivets provide highly reliable fastening and are used in a variety of industries and applications. They also are ideal for fastening dissimilar materials that are difficult to weld together, such as aluminum and steel.

Reduction in initial investment: Blind rivets only require an inexpensive hand-held riveter to use them and thus require a low initial investment.

Round Head

spbr-1

Standard flange shape.

Specification table (PDF)

Countersunk

spbr-2

The rivet head is flush with the surface of one of the mating parts.

Specification table (PDF)

Large Flange

spbr-3

The flange diameter is large. It is suitable for soft materials.

Specification table (PDF)

Fastening Catalog Download

dl-1

60 years' experience of manufacturing rivets : "Fukui Byora's Fastener Series" leads the industry with total fastening technology.

Catalog Download
