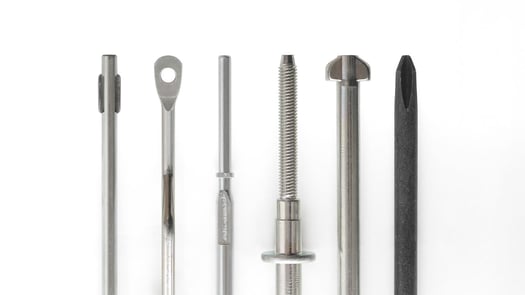

Examples of Long Shafts Formed with Multiple Steps, Flattened Sections, and/ or Flat Surfaces

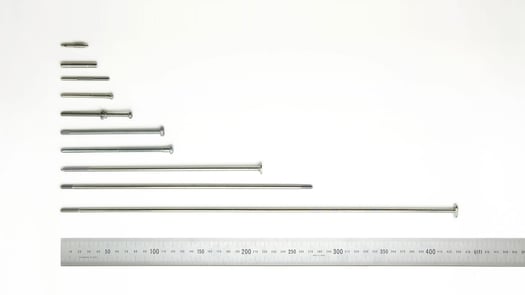

Rolled Shafts in a Wide Variety of Lengths

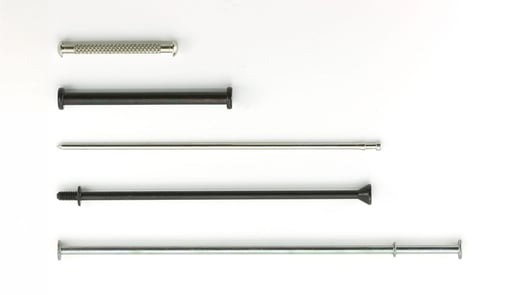

Long Parts with Multiple Flanges

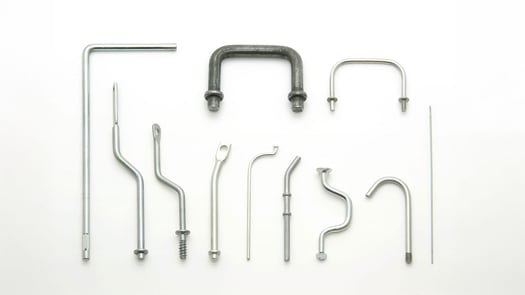

Long Shafts Formed with Bends and/or Flattened Sections
Steel
- Characteristics

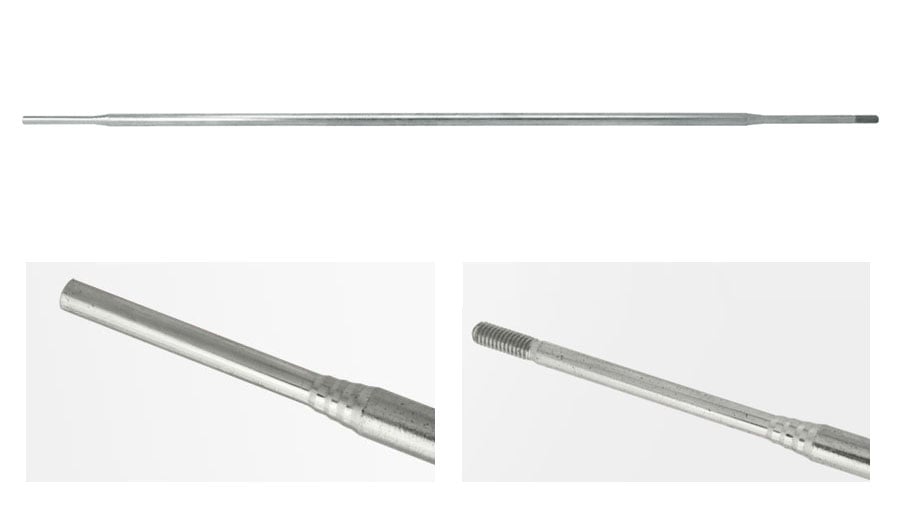

Example of a part extruded at both ends.
Total length: 330 mm
Copper / Brass
- Characteristics

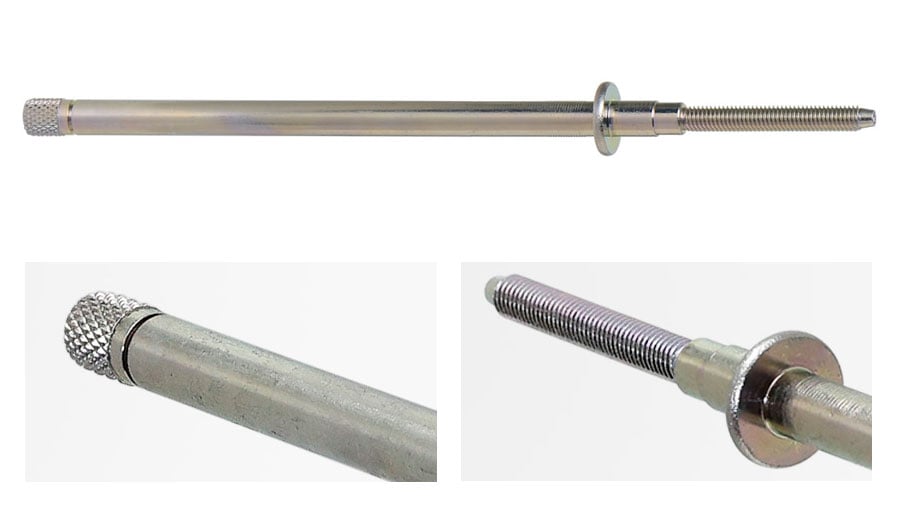

Example of a part with threaded, knurled, and grooved sections.
Total length:160 mm
Steel
- Characteristics

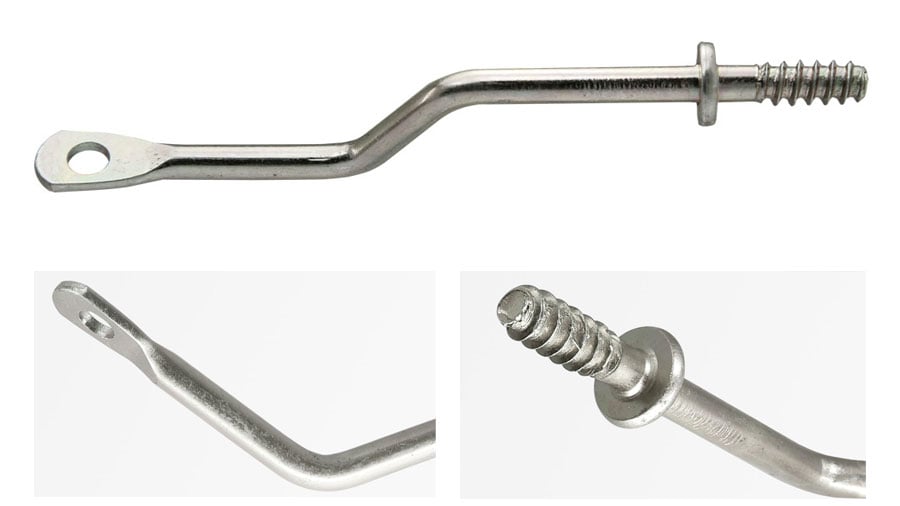

Example of a part with a combination of a flattened section, bends, a side hole, a middle flange, and a thread.
Total length: 80 mm
Stainless steel
- Characteristics

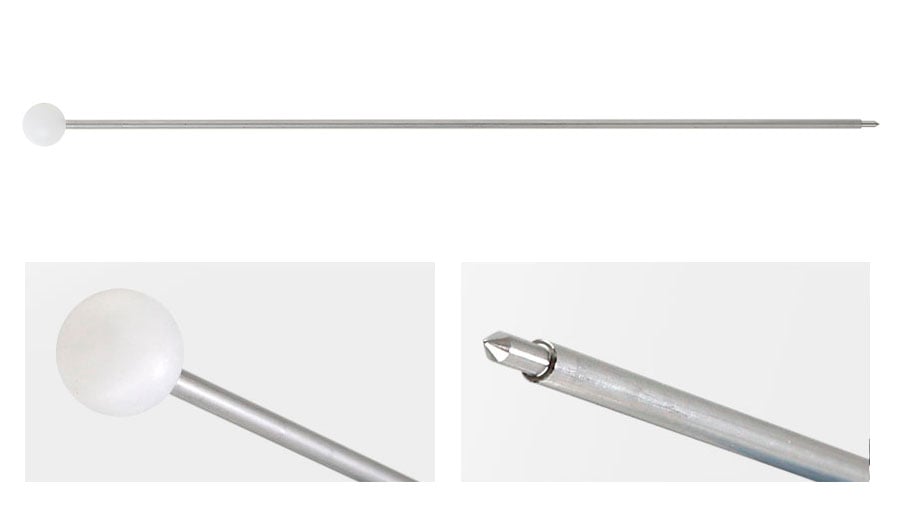

Example of a part combining plastic molding at one end and a sharp point at the other.
Total length: 420 mm
Stainless steel
- Characteristics

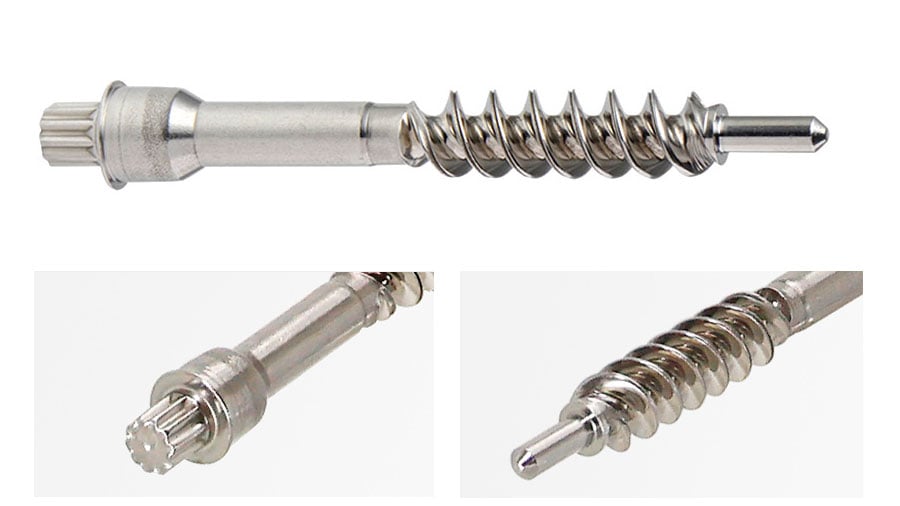

Example of a part with a cold formed worm gear.
Total length: 60 mm
Steel
- Characteristics

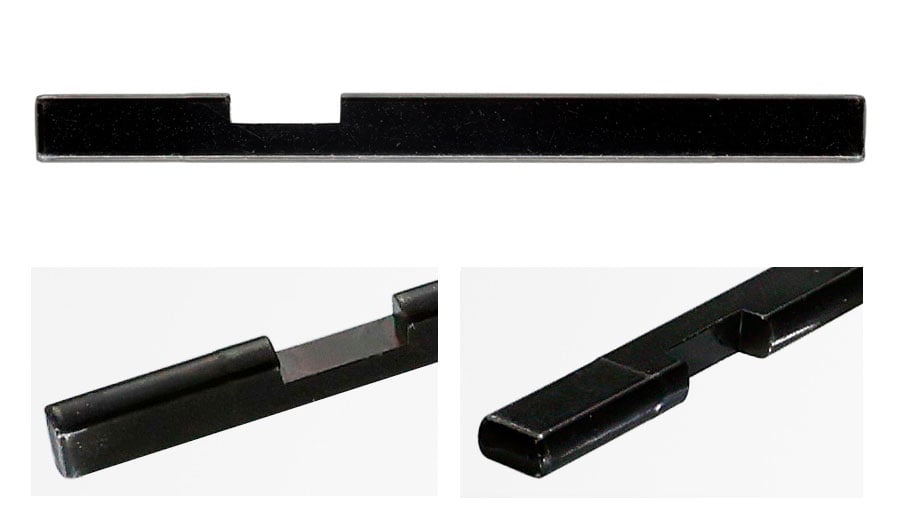

Example of a part with trimming.
Total length: 80 mm
