MICRO PRECISION PARTS

Connecting you to the future with precision

Our micro precision parts have brought to life countless projects in the automotive, home appliance, electronic component, semiconductor, and construction fields.

Product examples

Micro Precision Parts Examples
- Material :
Stainless steel

- Characteristics :

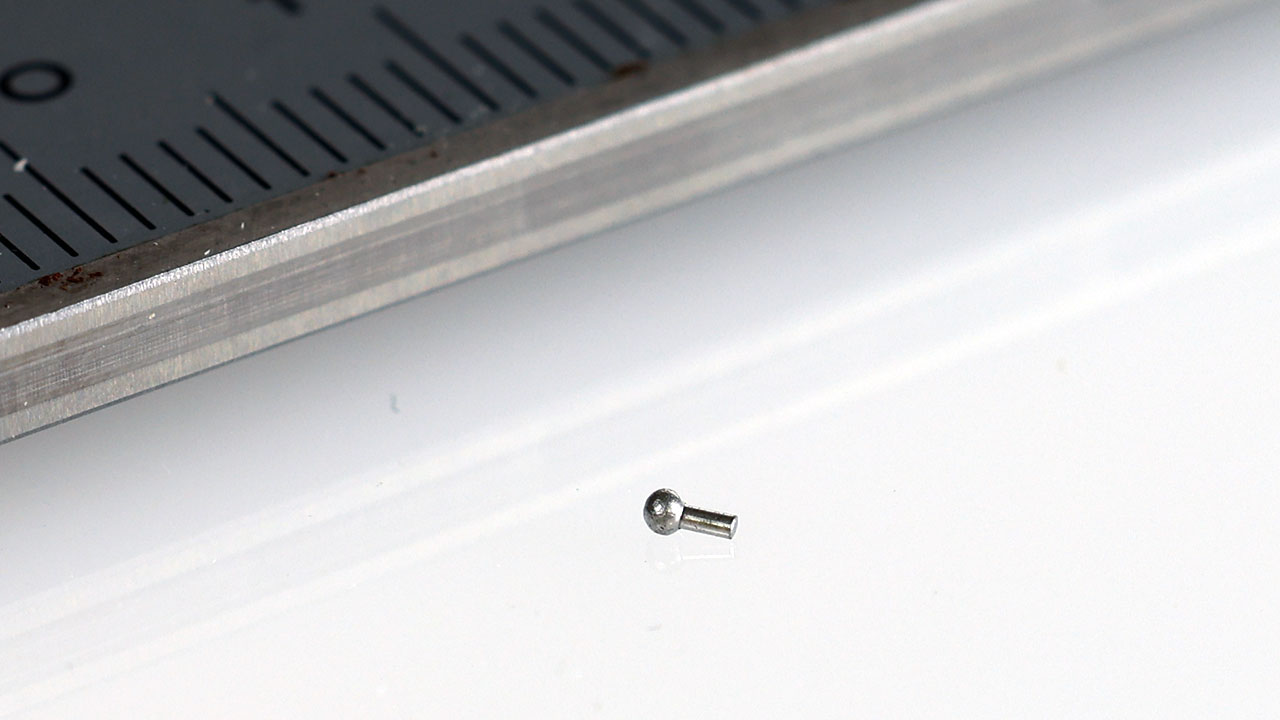

Example of a part with a spherical head with φ0.5 axis.
Micro Precision Parts Examples
- Material :
Copper / Brass

- Characteristics :

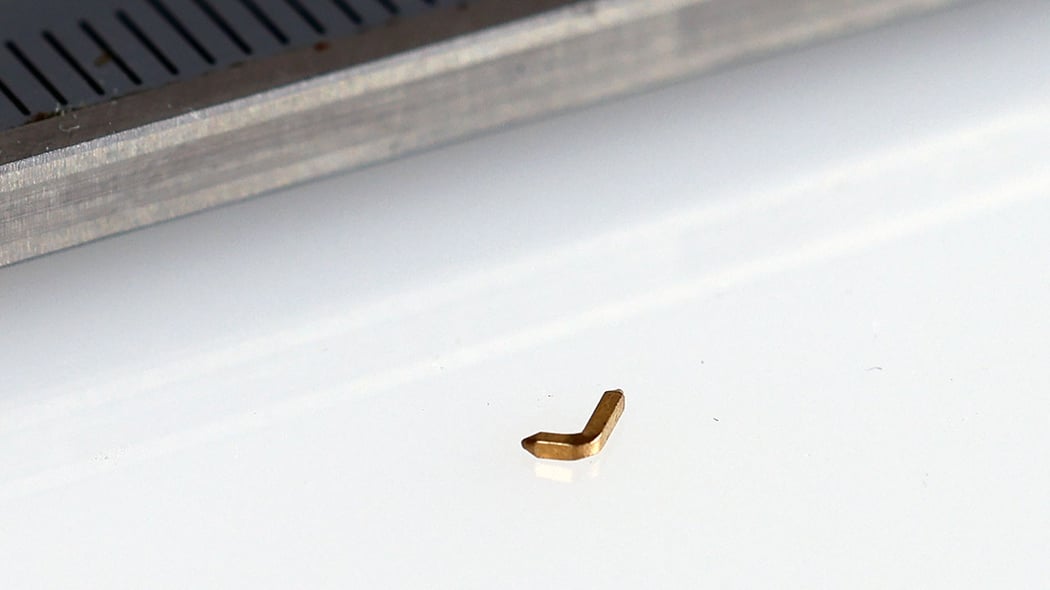

Example of a 0.5×0.5mm square shanked bent into an L-shape.
Micro Precision Parts Examples
- Material :
Stainless steel

- Characteristics :

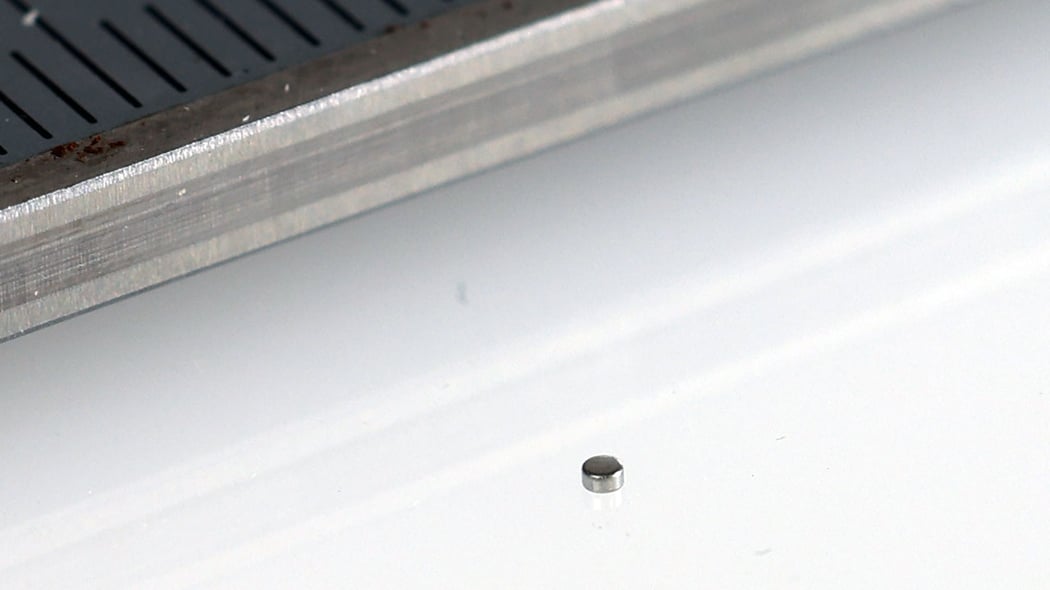

Example of a part with very tight tolerances.
Diameter tolerance range: 0.03mm
Thickness tolerance range: 0.024mm
Micro Precision Parts Examples
- Material :
Kovar

- Characteristics :

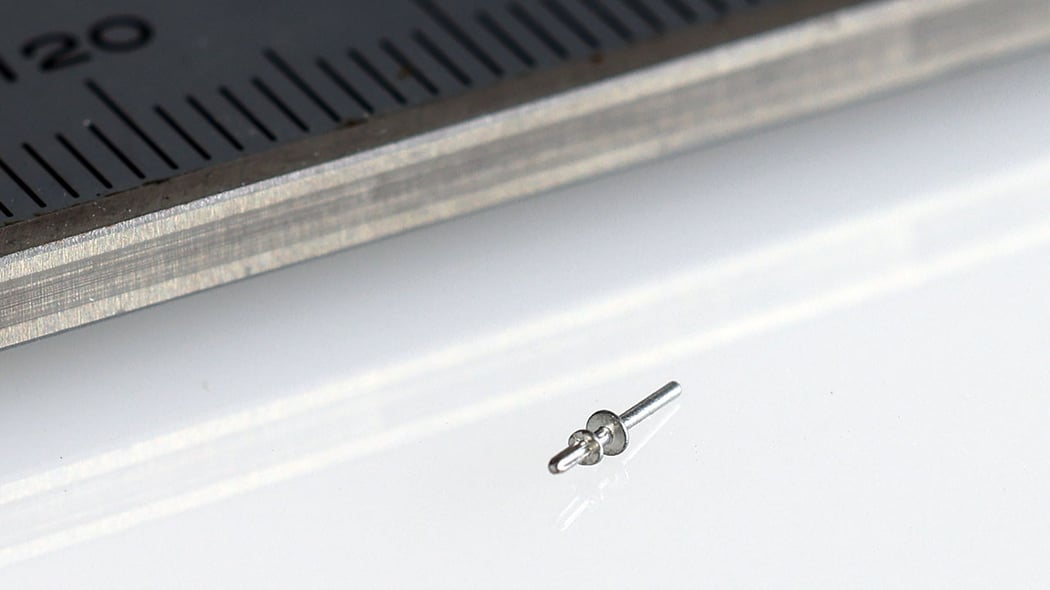

Example of a part with a 0.46mm diameter shank,two flanges and a geared tip at one end.
Micro Precision Parts Examples
- Material :
Kovar

- Characteristics :

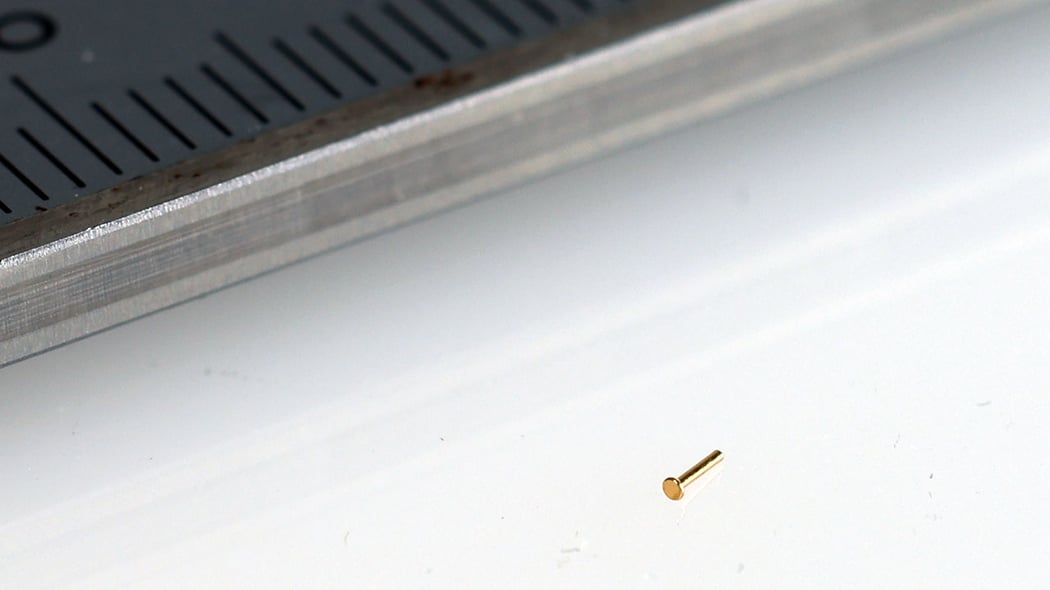

Example of a part with a 0.3mm diameter shank made from Kovar.
micro_exam06-1
- Material :
Stainless steel

- Characteristics :

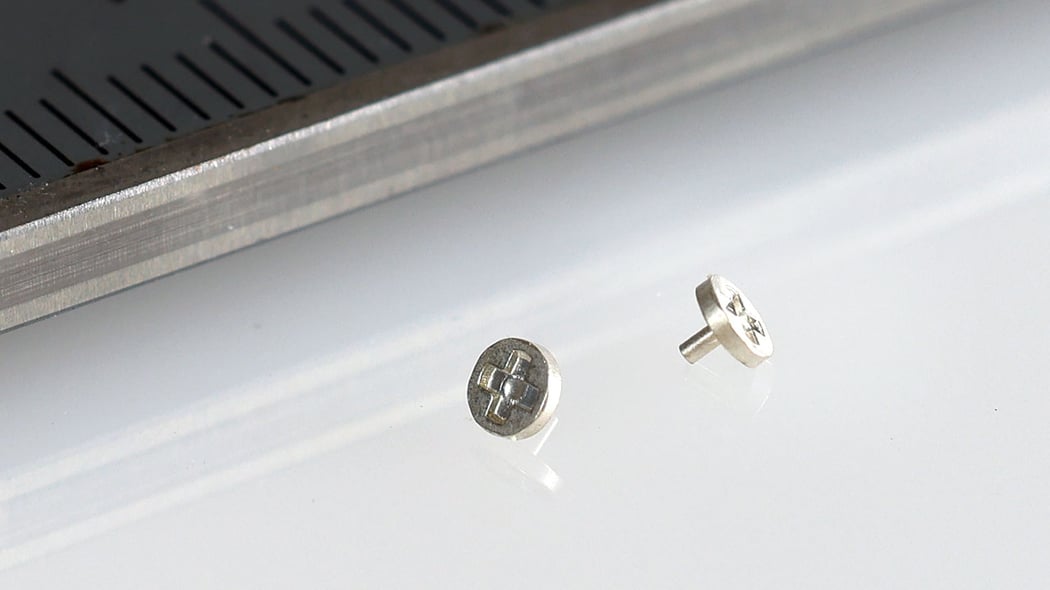

Part with a 0.6mm diameter shank with a 0.35mm diameter hole and a 2.5mm diameter head.
Micro Precision Parts Examples
- Material :
Copper

- Characteristics :

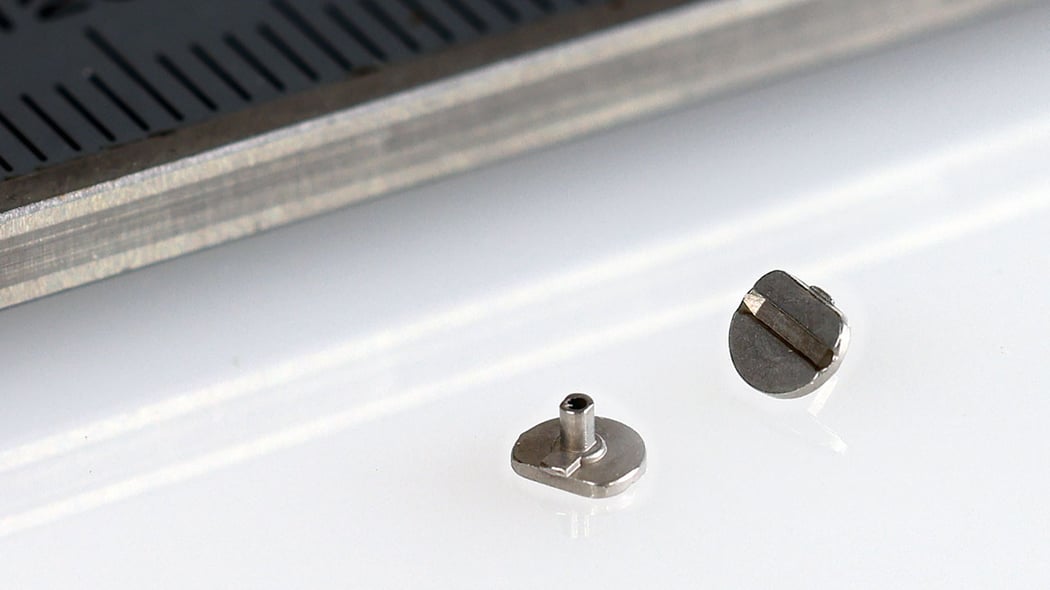

A part with a 0.7 diameter shank with a 0.5mm diameter hole in it and protrusions on the underside of a D-shaped flange.
Micro Precision Parts Examples
- Material :
Copper / Brass

- Characteristics :

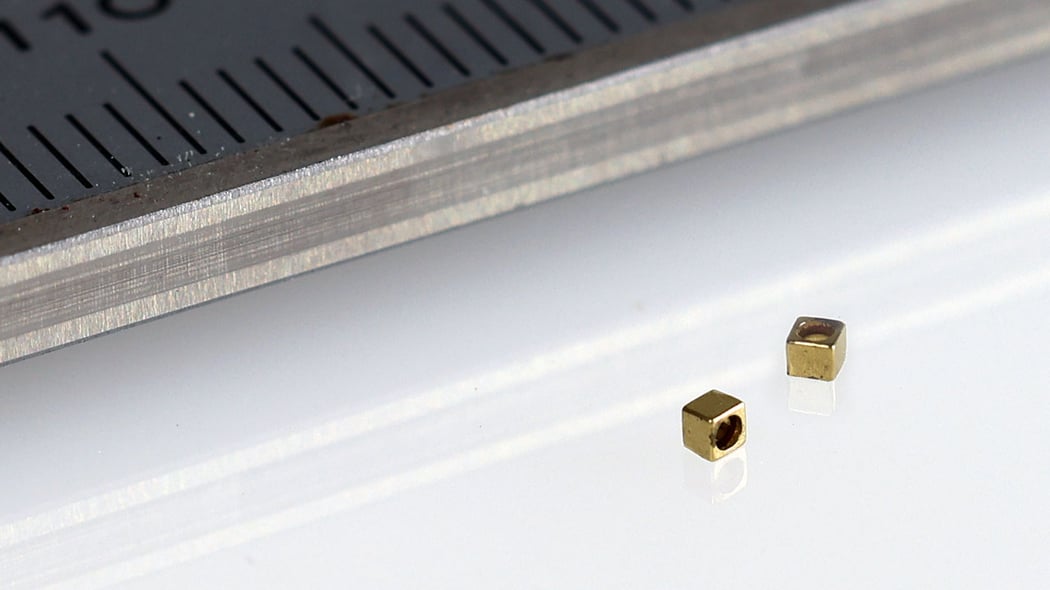

Example of a 1.2×1.2mm square shank with a through hole.
Micro Precision Parts Examples
- Material :
Copper / Brass

- Characteristics :
Example of a part with a cold-formed spherical tip.

Cold forming : Introduction

Cold forming is a manufacturing process that plastically deforms metal using dies. It allows for high speed production, little to no material waste compared to conventional machining, and creates a stronger end product due to work hardening of the material.
