Introduction

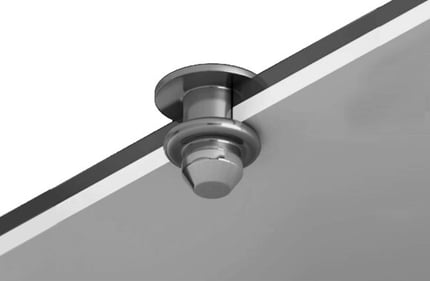

The large-diameter fastens the workpieces tightly together.

Designed for Improved Support

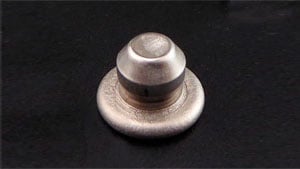

Our Blind Rivet(High-strength Clamping Type) is high-strength fastener that features excellent stress bearing properties and an exceptionally high clamping force.

gt-i0
gt-i1
gt-i3
gt_cg

Application

Automotive industry
Truck body
Cooler car
Construction material
Commercial appliances (refrigerators, laundry, etc.)
Trolley

material

Material

Sleeve : Austenitic stainless steel (fabric)
Mandrel : High-tensile stainless steel wire (fabric)

comparison

Comparison of Shear Strength

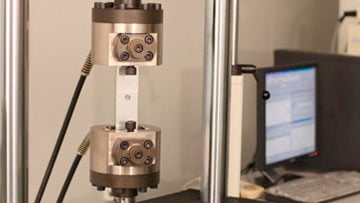

Results of comparing the shear strength of our standard product and High-strength Clamping Type.

gt_test_zu2-1
gt_test_zu-1

(Test Information)

RIVET TYPE Standard Type High-strength Clamping Type
Sleeve Austeniticstainless steel Austeniticstainless steel
Mandrel High-tensile stainless steel wire High-tensile stainless steel wire
 Rivet body diameter 0.189 in (4.8 mm) 0.189 in (4.8 mm)
 Rivet body length 0.685 in
(17.4 mm)		 0.689 in
(17.5 mm)

Work hole diameter 0.193 in (4.9 mm)
Pull speed 0.591 in (15 mm) / min
Specimen Information (Material) Heat-treated steel plate
(Worh Thickness) 80 - 100% of recommended fastening range



gtzu

TECHNICAL SPECIFICATION

[ Symbols of standard dimensions and installation diagram ]

Specification Table (PDF)
